01 / PLATFORM OVERVIEW
AK pattern rifle
An AK-pattern rifle is organized around a stamped or milled receiver, long-stroke piston operating group, trunnion and barrel interfaces, distinctive selector and controls, and a curved detachable magazine. Country, model, caliber, and generation differences matter.
- PLATFORM FAMILY
- Long-Stroke Piston Rifle
- RECOGNITION PROFILE
- Curved magazine, separate gas tube above the barrel, long-stroke piston architecture, distinctive receiver and selector, and platform-specific furniture geometry.
- REFERENCE STATUS
- PUBLIC / TECHNICAL ORIENTATION
AK / INTERACTIVE TECHNICAL REFERENCE
AK pattern rifle
9 SELECTABLE COMPONENT SYSTEMS
SELECT A NUMBERED COMPONENT
Public technical orientation—not assembly instruction. Exact dimensions, interfaces, specifications, service procedures, and lawful configuration are model and jurisdiction dependent. Use current manufacturer documentation and a qualified armorer or gunsmith where appropriate.
02 / PLATFORM-SPECIFIC FIELD STRIP
AK-pattern rifle field strip
A conventional AK field strip removes the receiver cover, recoil-spring assembly, bolt carrier with long-stroke piston, and rotating bolt. Gas-tube removal is a separate model-dependent maintenance step.
OPERATING SYSTEMLong-stroke gas piston with a rotating bolt; stamped, milled, country, and model variations matter.ORDINARY FIELD SERVICE / NOT ARMORER DISASSEMBLY

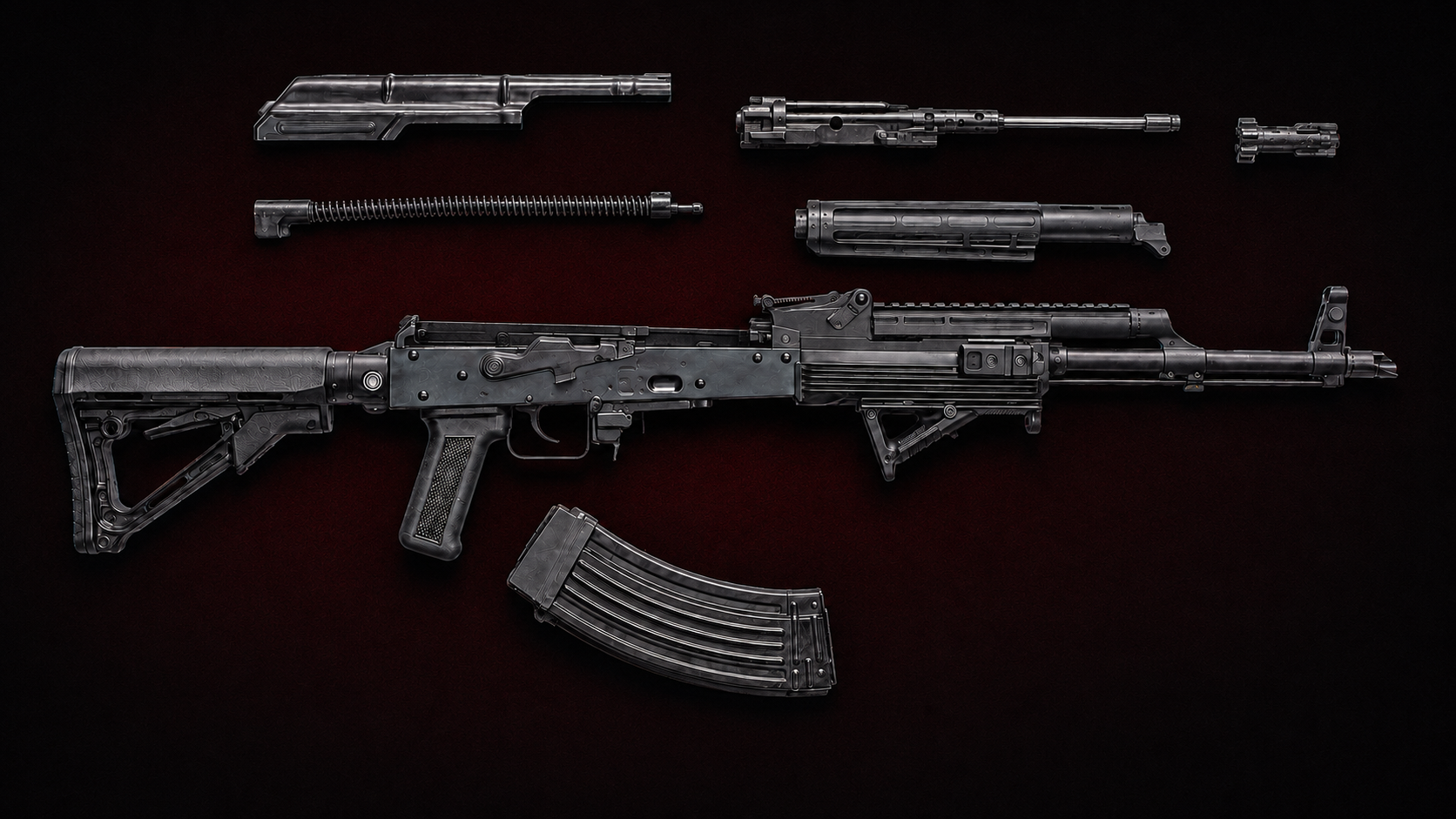

MATCHED AK FIELD-STRIPPED VIEW · MAJOR SERVICE GROUPS SEPARATED
- Exact variant manual
- Clear bench with controlled parts area
- Eye protection
- Cleaning kit appropriate to the caliber and gas system
- Receiver cover
- Recoil-spring assembly
- Bolt carrier and attached gas piston
- Rotating bolt
- Gas tube and upper handguard only when the manual calls for removal
GUIDED SEQUENCE0 OF 9 STEPS REVIEWED
STEP 01 / SAFE1 OF 9
Remove the magazine and clear the rifle
Keep the muzzle safe, operate the magazine release, and remove the magazine. Move the selector to permit action movement, pull the charging handle fully rearward, and inspect the chamber, bolt face, and magazine opening visually and physically. Let the carrier go forward only after the rifle is confirmed empty.
CONFIRM BEFORE CONTINUING
- ✓Magazine removed
- ✓Chamber and bolt face checked
- ✓Magazine opening checked from both sides
PLATFORM CAUTION
The safety lever may not hold the action open. Maintain control of the charging handle during inspection.
MODEL VARIATIONS & COMMON MISTAKESEXPAND +
- Stamped versus milled receivers and rear-trunnion geometry
- Conventional versus hinged optic-mount receiver covers
- Country-specific gas-tube, handguard, and furniture retainers
- AK-derived shotguns and other non-rifle variants use different procedures
MANUFACTURER MANUAL CONTROLS
This guide is a platform-level orientation to ordinary field stripping only. Before disassembly, use the manufacturer’s current manual for the exact make, model, caliber or gauge, generation, configuration, specifications, safety instructions, and function-check sequence. Stop if the firearm differs from the description, a part resists normal hand pressure, or damage is suspected. Detailed bolt, trigger, firing-pin, extractor, ejector, gas-system, magazine-tube, headspace, timing, or fitted-component work belongs to a qualified armorer or gunsmith.
03 / KEY COMPONENTS
Move from callout to category.
Every system in the diagram connects to a dedicated gear or component workspace.
04 / RECOMMENDED RESEARCH
Brands & manufacturers.
Editorial starting points for model-specific research—not universal rankings, guarantees, or substitutes for compatibility review.
05 / APPLICATION
Use-case notes.
- Range and recreational configuration
- Historic or collector-oriented configuration
- Field configuration where lawful
- Modernized optic and accessory configuration
Use cases describe planning contexts only. The complete configuration, user, environment, and applicable law control suitability.
