02 / PLATFORM-SPECIFIC FIELD STRIP
AR-10 / large-frame field strip
Large-frame AR rifles resemble the AR-15 but do not share one universal dimensional standard. Routine access usually begins at the receiver pins, followed by removal of the charging handle and the model-specific large-frame carrier group.
OPERATING SYSTEMLarge-frame, rotating-bolt AR family; DPMS/SR-25, ArmaLite, and proprietary patterns vary.ORDINARY FIELD SERVICE / NOT ARMORER DISASSEMBLY

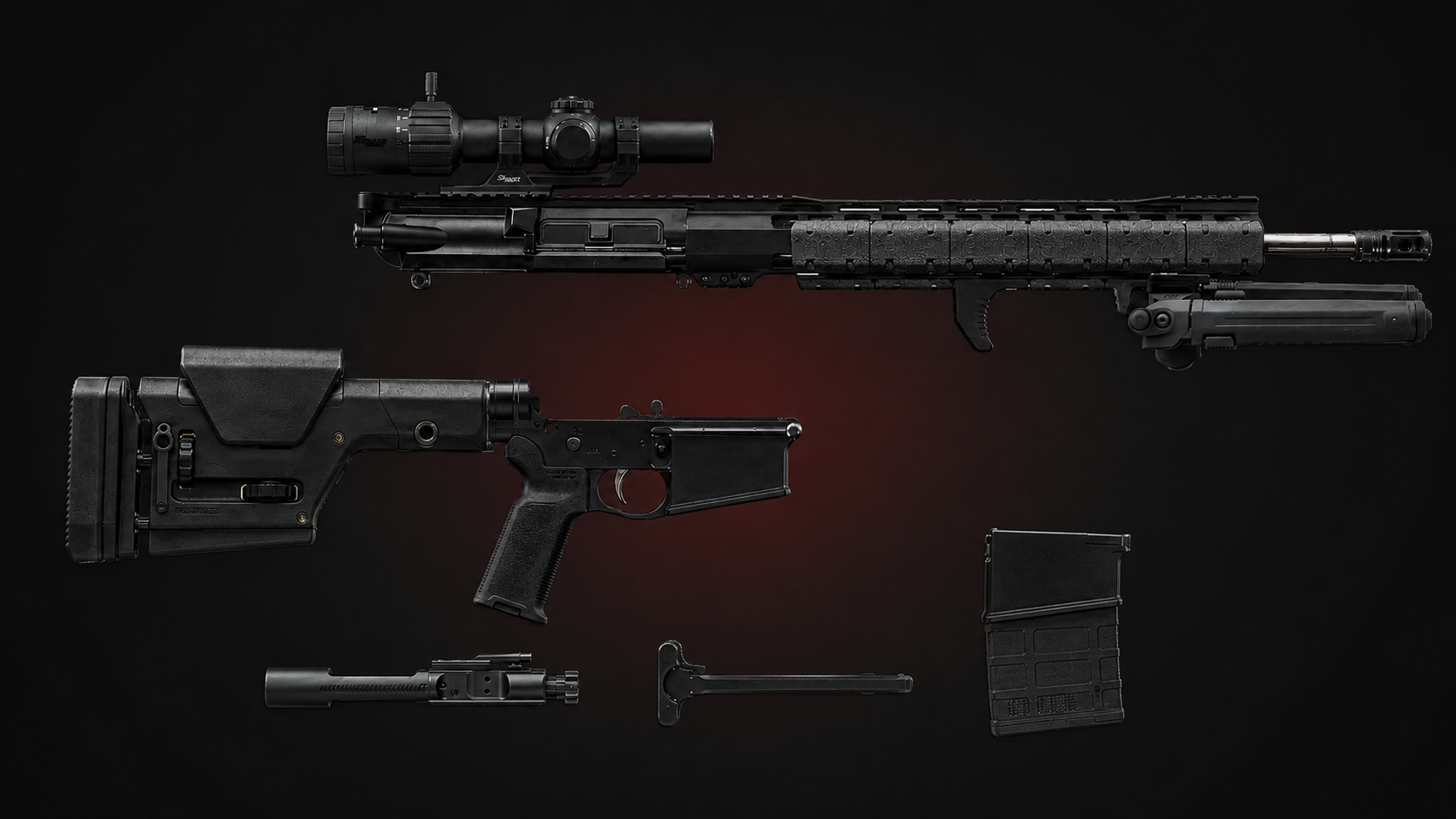

MATCHED AR10 FIELD-STRIPPED VIEW · MAJOR SERVICE GROUPS SEPARATED
- Exact make, model, and generation manual
- Clear bench and parts tray
- Eye protection
- Cleaning kit sized for the rifle’s caliber
- Upper receiver and barrel assembly
- Lower receiver assembly
- Large-frame charging handle
- Large-frame bolt-carrier group
- Manufacturer-specific recoil components left in the lower during ordinary service
GUIDED SEQUENCE0 OF 9 STEPS REVIEWED
STEP 01 / SAFE1 OF 9
Remove the magazine and verify clear
Point in a safe direction, remove the magazine, lock the bolt to the rear, and inspect the chamber, bolt face, and magazine well visually and physically. Move every cartridge and loaded magazine away from the bench.
CONFIRM BEFORE CONTINUING
- ✓Magazine removed first
- ✓Bolt locked rearward
- ✓Chamber, bolt face, and magazine well checked
PLATFORM CAUTION
Large-frame magazines and cartridges can resemble other patterns; account for the actual caliber and every ammunition source.
MODEL VARIATIONS & COMMON MISTAKESEXPAND +
- DPMS/SR-25 versus ArmaLite receiver and magazine patterns
- Spring-loaded versus free-floating firing pins
- Direct-gas, piston, and side-charging systems
- Proprietary carriers, extractors, dual ejectors, and recoil assemblies
MANUFACTURER MANUAL CONTROLS
This guide is a platform-level orientation to ordinary field stripping only. Before disassembly, use the manufacturer’s current manual for the exact make, model, caliber or gauge, generation, configuration, specifications, safety instructions, and function-check sequence. Stop if the firearm differs from the description, a part resists normal hand pressure, or damage is suspected. Detailed bolt, trigger, firing-pin, extractor, ejector, gas-system, magazine-tube, headspace, timing, or fitted-component work belongs to a qualified armorer or gunsmith.
