01 / PLATFORM OVERVIEW

Striker-fired handgun

A modern striker-fired handgun is organized around the slide, barrel, recoil system, frame, fire-control and safety systems, magazine, sights or optic footprint, grip geometry, controls, and holster interface.

PLATFORM FAMILY
Semiautomatic Handgun
RECOGNITION PROFILE
Short reciprocating slide, polymer or metal frame, grip containing a detachable magazine, trigger guard, and compact barrel assembly.
REFERENCE STATUS
PUBLIC / TECHNICAL ORIENTATION
HG / INTERACTIVE TECHNICAL REFERENCE

Striker-fired handgun

9 SELECTABLE COMPONENT SYSTEMS

Dark studio profile of a striker-fired handgun with optic, threaded barrel, and accessory module
SELECT A NUMBERED COMPONENT
Operating System / SELECTED SYSTEM

Slide

The reciprocating slide houses the barrel and major operating components while providing sight interfaces.

INTERFACE REVIEW

Model, generation, optic cut, and internal-part compatibility must be confirmed.

RESEARCH STARTING POINTS

Public technical orientation—not assembly instruction. Exact dimensions, interfaces, specifications, service procedures, and lawful configuration are model and jurisdiction dependent. Use current manufacturer documentation and a qualified armorer or gunsmith where appropriate.

02 / PLATFORM-SPECIFIC FIELD STRIP

Striker-fired handgun field strip

A typical striker-fired handgun field strip separates the slide from the frame and removes the recoil-spring assembly and barrel. The takedown control sequence—and whether a verified-empty trigger press is required—depends on the exact model and generation.

OPERATING SYSTEMShort-recoil semiautomatic handgun with striker-fired ignition; locking and takedown systems vary.ORDINARY FIELD SERVICE / NOT ARMORER DISASSEMBLY

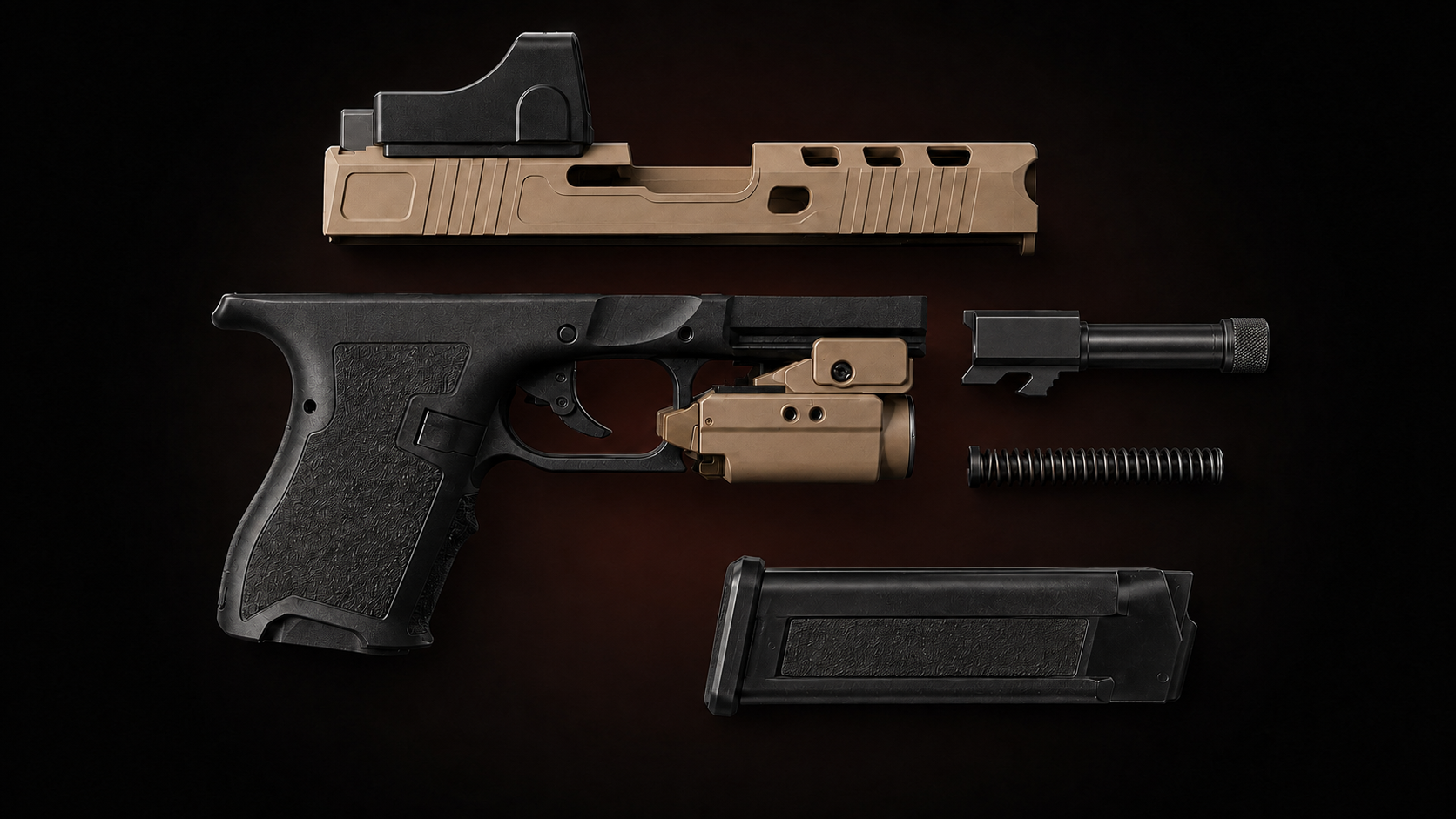

Field-stripped Striker-Fired Handgun with its ordinary service components separated
MATCHED HG FIELD-STRIPPED VIEW · MAJOR SERVICE GROUPS SEPARATED
PREPARATION & TOOLS
  • Exact model and generation manual
  • Clear bench facing a safe backstop
  • Eye protection
  • Parts tray and manufacturer-approved cleaning supplies
MAJOR FIELD-STRIP COMPONENTS
  • Frame assembly
  • Slide assembly
  • Barrel
  • Recoil-spring assembly
  • Magazine; optic and light normally remain installed unless the manual says otherwise
GUIDED SEQUENCE0 OF 9 STEPS REVIEWED
STEP 01 / SAFE1 OF 9

Remove the magazine and verify clear

Point at a safe backstop, keep the trigger finger indexed, and remove the magazine first. Lock the slide open and inspect the chamber, breech face, feed ramp, and magazine well visually and physically. Move all ammunition and loaded magazines to another area.

CONFIRM BEFORE CONTINUING
  • ✓Magazine removed first
  • ✓Slide locked open
  • ✓Chamber, breech face, and magazine well checked
PLATFORM CAUTION

Do not lower the slide or touch the trigger until the empty condition has been independently confirmed.

MODEL VARIATIONS & COMMON MISTAKESEXPAND +
  • Trigger-required versus trigger-free takedown systems
  • Captured versus non-captured recoil-spring assemblies
  • Threaded barrels, compensators, optics, and lights can change access
  • Modular chassis and rotating- or fixed-barrel designs require their own manuals
MANUFACTURER MANUAL CONTROLS

This guide is a platform-level orientation to ordinary field stripping only. Before disassembly, use the manufacturer’s current manual for the exact make, model, caliber or gauge, generation, configuration, specifications, safety instructions, and function-check sequence. Stop if the firearm differs from the description, a part resists normal hand pressure, or damage is suspected. Detailed bolt, trigger, firing-pin, extractor, ejector, gas-system, magazine-tube, headspace, timing, or fitted-component work belongs to a qualified armorer or gunsmith.

03 / KEY COMPONENTS

Move from callout to category.

Every system in the diagram connects to a dedicated gear or component workspace.

04 / RECOMMENDED RESEARCH

Brands & manufacturers.

Editorial starting points for model-specific research—not universal rankings, guarantees, or substitutes for compatibility review.

05 / APPLICATION

Use-case notes.

  • Range and recreational setup
  • Competition-oriented setup
  • Concealed-carry configuration where lawful
  • Property-defense configuration where lawful

Use cases describe planning contexts only. The complete configuration, user, environment, and applicable law control suitability.
